How to replace city tour 2 brake assembly

City Tour 2 Single Replacement Brake Assembly

1. Remove your wheels.

2. Unclip the basket from the crossbar frame.

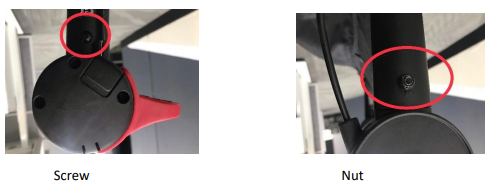

3. Unscrew one screw & nut (on each side) above the wheel hub/Brake assembly and keep
them aside.

4. Remove the wheel hub/Brake assembly on both sides

5. Replace with New wheel hub/Brake assembly on both sides, ensuring you insert them with
the red brake on the right side and wheel hub and pins facing outward.

6. Replace the Screws and Nut.

7. Replace the Basket.

8. Replace the Wheels.
